EPOXY RESIN
EPOXEN has an extensive range of Two Part Liquid Epoxy Thermo Setting Resin Systems for the protection against Mechanical, Environmental and Chemical damage/exposure with high reliability at long life testing. Our epoxy resins have great thermal shock, moisture, heat and chemical resistance.
Art Resin
If you're looking to add a beautifully clear, glossy, non-yellowing, UV stable coating to your artwork, photos or other creative projects then CP05 offers unsurpassed performance coupled with incredible ease-of-use for perfect results, every time.
Packing: 1 kg/bottle, 5 kg/bottle
| Code |
Color |
Mixed ratio |
Dry time |
Key features / Applicability |
| CP 05 |
Clear |
100:50 |
60 mins / 25°C |
Clear, no bubbles for art |
All-Purpose Epoxy
Unfilled composite epoxy can comprise of two or more fillers, components or fibres. For example Kevlar fiber, glass fiber, carbon fiber and etc.
Application method: coating, casting, spraying, potting, dipping, compositing
Packing: 1 kg/bottle, 5 kg/bottle
| Product Code |
Gel time |
Mixed ratio |
Color |
Key features / Applicability |
| CP 307 |
3.0 hrs / 25°C |
100:100 |
Clear |
flexible, low hardness |
| CP 359 |
27 min / 25°C |
100:50 |
Light yellowish |
strong chemical resistance |
| CP 360 |
3.2 hrs / 25°C |
100:50 |
Clear |
general, long pot life |
| CP 362 |
36 min / 25°C |
100:50 |
Clear |
general, structural |
| CP 385 |
2.8 hrs / 25°C |
100:50 |
Clear |
HDT 150°C |
| CP 390 |
45 min / 25°C |
100:50 |
Light yellowish |
general, structural |
Epoxy for Laminating & Infusion
Unfilled composite epoxy only
Application method: laminating, infusion
Packing: 1 kg/bottle, 5 kg/bottle
| Product Code |
Gel time |
Mixed ratio |
Color |
Key features / Applicability |
| CP 322 |
5.5 hrs / 25°C |
100:35 |
Clear |
ultra low viscosity, infusion product |
| CP 360 |
3.2 hrs / 25°C |
100:50 |
Clear |
long pot life |
Electronic Potting Epoxy
Epoxies are heat and chemical resistant and are good electrical insulators, making them a frequent choice for electronic and electrical applications. They are also valuable when a strong bond is required, such as in aircraft, marine, and auto manufacturing.
Packing: 1 kg/bottle, 5 kg/bottle, 20 kg/pail
| Product Code |
Gel time |
Mixed ratio |
Color |
Key features / Applicability |
| CP 810 |
45 mins / 25°C |
100:50 |
Color |
High mechanical, low shrinkage part |
| CP 817 |
26 mins / 25°C |
100:50 |
Black |
High mechanical, low shrinkage part |
| CP 829 |
42 mins / 25°C |
100:50 |
Clear |
Transparent, fast curing |
| CP 830 |
3 hrs / 25°C |
100:100 |
Black |
Flexible structural application |
Epoxy Based Adhesive
Epoxy adhesive is stronger, more flexible and have greater impact resistance than other forms of adhesives. These bonding products are used in multiple industries including automotive, aerospace, aviation, construction, electronics, and electrical.
Packing: 1 kg/bottle
| Product Code |
Dry time |
Mixed ratio |
Color |
Key features / Applicability |
Pdf. |
| CP 361 |
15 mins / 25°C |
100:50 |
Clear |
Fast curing time |
|
You may check our shopping cart at http://epoxy.my.
SILICONE RESIN
Silicone sealant is a liquid form of adhesive. Typically, it looks, feels, and acts like a gel. It has a different chemical make-up from other organic polymer-based adhesives. Unlike other adhesives, silicone keeps its elasticity and stability in both high and low temperatures. Furthermore, silicone sealant is resistant to other chemicals, moisture, and weathering. This makes it less likely to fail when building and repairing objects.
Unlike some adhesives, silicone sealants must cure. Curing silicone basically means letting it dry. Curing silicone isn’t necessarily difficult, but it does require patience. The temperature needs to be between 40°F and 100°F, and there needs to be between 5% and 95% humidity for silicone to cure. It can take as little as 24 hours to cure, or it can take up to several days if the sealant is especially thick.

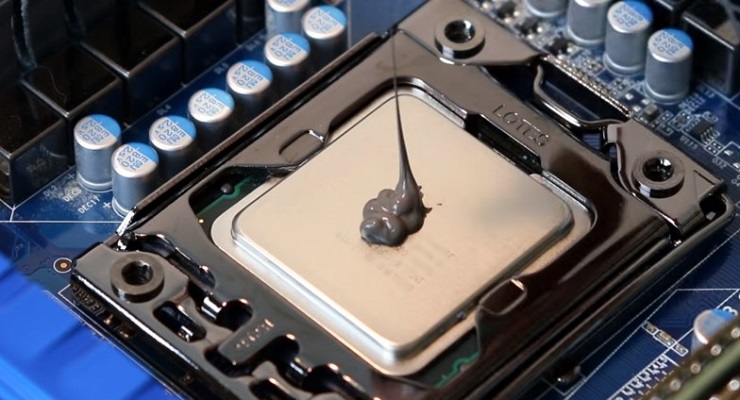

ONE PART THERMAL CONDUCTIVE SILICONE
Thermally conductive silicone encapsulants can be used in potting applications to dissipate heat away from a component to a suitable heat sink. They also provide protection from harsh environments, vibration and thermal shock. Addition cure silicones provide deep section cure allowing for complete encapsulation for environmental protection whilst maintaining an effective heat path.
With the continued miniaturization and expanding population of components that comprise electronic devices, mitigation of generated heat is an ongoing issue today. To achieve operational stability and longevity, thermally conductive materials are often incorporated within the device to aid in heat dissipation. With the addition of specialty fillers, silicone formulations can be customized to facilitate the flow of heat to or from electronic components in an assembly.
| Code |
Color |
Thermal conductivity (W/m.k) |
Thermal resistivity / 40psi (m2 K/W) |
Volume resistivity (ohm.cm) |
Breakdown voltage (KV/mm) |
Working temperature (°C) |
| CS 6010 |
White |
>1.0 |
<0.4 |
2.0 x 1014 |
25 |
-55 - 180 |
| CS 6015 |
White |
1.5 |
<0.1 |
2.0 x 1014 |
23 |
-55 - 120 |
| CS 6126 |
Grey |
2.6 |
<0.12 |
1.0 x 108 |
15 |
-55 - 120 |
| CS 6133 |
Grey |
3.3 |
<0.1 |
1.0 x 1010 |
18 |
-55 - 120 |
| CS 6236 |
White |
3.6 |
<0.12 |
1.0 x 1014 |
20 |
-55 - 200 |
TWO PART THERMAL CONDUCTIVE SILICONE
2-component, thermally conductive potting material. Its low viscosity allows the material to conform to intricate shapes of thermal interfaces and contributes to the reduction of contact interference in complex designs. TIA216G quickly cures to a soft rubber gel with exposure to heat and retains tacky adhesion on its cured surface.
| Code |
Color |
Mixing ratio |
Gel time (25°C) |
Hardness (shore A) |
Thermal conductivity (W/m.k) |
Working temperature (°C) |
| CS 6200 |
Yellow |
1:1 |
60 - 120 min |
15 - 30 |
1 |
-55 - 250 |
| CS 6206 |
Light Grey |
1:1 |
30 - 60 min |
50 - 65 |
0.8 |
-55 - 250 |
| CS 6230 |
White / Black |
4:1 |
<60 min |
30 - 40 |
0.4 |
-55 - 200 |
| CS 6236 |
White / Grey |
1:1 |
<60 min |
30 - 40 |
0.8 |
-55 - 200 |
GENERAL PURPOSE SILICONE
General purpose silicone potting compound is designed for the protection of any devices. It has excellent high temperature properties, suitable for use in applications where the operating temperature will be up to 220°C. As with other silicone potting compounds it is soft and flexible offering protection to delicate components, while it has good flow characteristics allowing for easy potting of small or complex units such as small components.
| Code |
Color |
Hardener type |
Gel time (25°C) |
Tensile strength (MPa) |
Hardness (shore A) |
Working temperature (°C) |
| CS 6300 |
White / Black |
Deoxime |
5 - 15 min |
>2.0 |
40 - 55 |
-55 - 200 |
| CS 6310 |
White / Black |
Dealcoholized |
5 - 15 min |
>2.0 |
40 - 55 |
-55 - 200 |
| CS 6311 |
Transparent |
Dealcoholized |
5 - 15 min |
>1.5 |
30 - 40 |
-55 - 200 |
| CS 6312 |
Transparent |
Dealcoholized |
5 - 15 min |
>0.5 |
25 - 35 |
-55 - 200 |
| CS 6314 |
White / Black |
Dealcoholized |
5 - 15 min |
>1.5 |
30 - 40 |
-55 - 200 |
| CS 6313 |
Transparent |
Dealcoholized |
20 - 40 min |
>2.5 |
30 - 40 |
-55 - 200 |
| CS 6316 (2-part) |
White / Black |
Dealcoholized |
10 - 20 min |
>2.0 |
40 - 55 |
-55 - 200 |
COATING-BASED SILICONE
In industrial processing, silicone-based coatings are used in many areas, to protect, preserve and bring functionality and style to any and all surfaces. They are chosen over other materials for their technical and mechanical characteristics and their flexibility:
- Delivered in different forms, from liquids to elastomers, to adapt for various applications
- Safe and non-toxic to comply with industrial standards and consumer demand
- Weather resistant
- Non-sticky
- Resistant to chemicals and extreme weather conditions
- Water repellent
| Code |
Type |
Color |
Viscosity (mPa.s) |
Solid content (%) |
Gel time (min) |
Hardness (shore A/D) |
| CS 6605 |
Solvent free RTV |
Transparent |
350 - 550 |
100 |
5 - 15 |
25 - 35A |
| CS 6620 |
Modified polyurethane |
Yellow |
70 - 180 |
40 - 45 |
10 - 20 |
55 - 65A |
| CS 6600 |
With solvent |
Light yellow |
700 - 1100 |
65 - 75 |
10 - 20 |
20 - 25D |
| CS 6601 |
Environmental friendly |
Light yellow |
700 - 1100 |
25 - 35 |
10 - 20 |
22 - 27D |
| CS 6602 |
Rubbery type |
Blue |
150 - 220 |
20 - 24 |
10 - 20 |
25 - 35A |
| CS 6100 |
Acrylate type |
Transparent |
230 - 270 |
28 - 32 |
25 - 35 |
30 - 40D |
| Code |
Adhesion IPC-TM-650 |
Moisture insulation IPC-CC830B |
High low temperature impact |
Salt spray test |
Immersion test (7 days) |
Flame retardant (UL94V0) |
| CS 6605 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |
| CS 6620 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |
| CS 6600 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |
| CS 6601 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |
| CS 6602 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |
| CS 6100 |
Pass |
Pass |
Pass |
Pass |
Pass |
Pass |

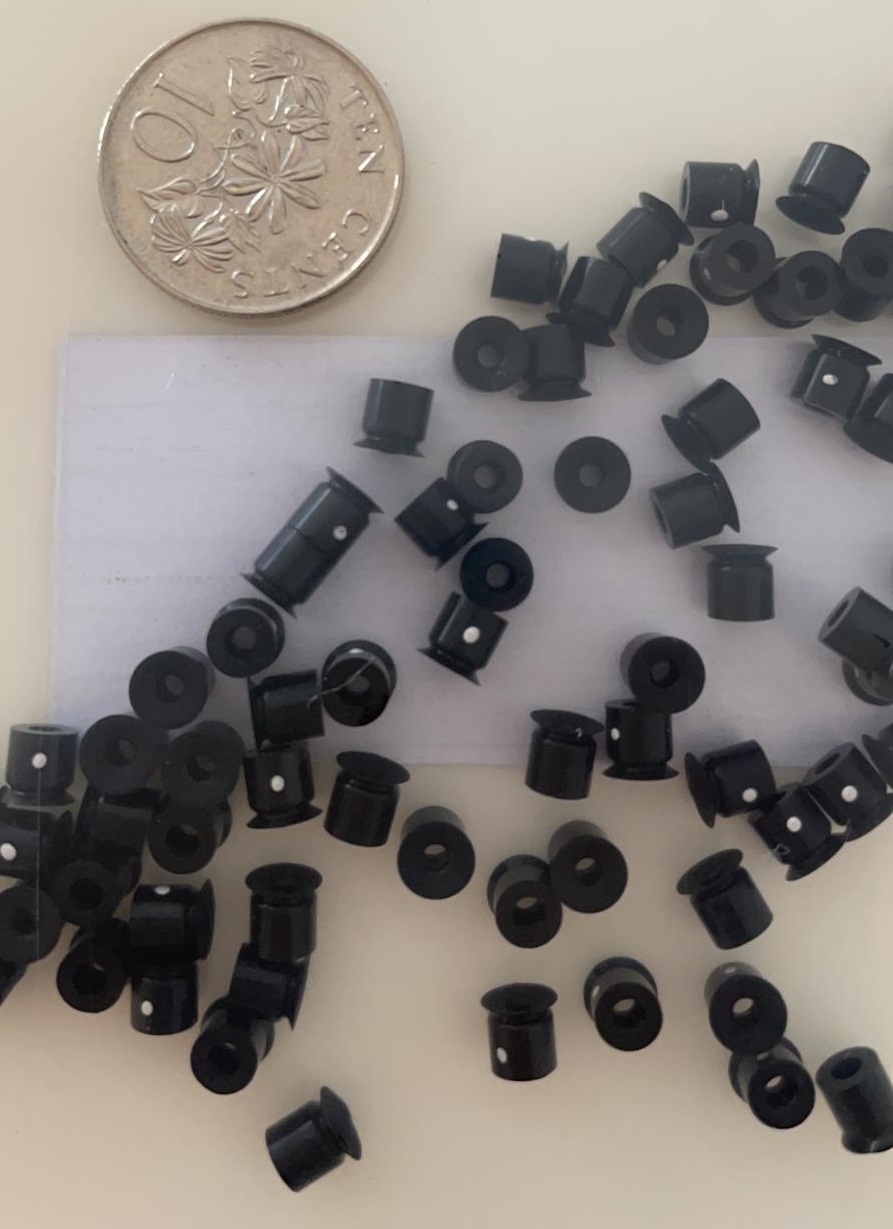

SILICONE COLLET / PICKUP NOOZLE
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic significantly reduces thermal stress, it is more susceptible to damage by external mechanical force. As a result, silicone is used for collet / pickup noozle.
Features:
- Ideal for indication light on hand held products
- Long life and robust package
- MSL (Moisture Sensitivity Level): 3
- RoHS compliant.
- ESD grade
Type:
- Normal ESD Silicone, black color, hardness 60, working temperature -40C to +200C
- Low temp ESD Silicone, black colour, hardness 60, working temperature -70C to +200C
POLYURETHANE RESIN
Polyurethane is a plastic material, which exists in various forms. It can be tailored to be either rigid or flexible, and is the material of choice for a broad range of end-user applications. Polyurethanes are versatile, modern and safe. They are used in a wide variety of applications to create all manner of consumer and industrial products that play a crucial role in making our lives more convenient, comfortable and environmentally friendly.
POLYURETHANE FOR LAMINATION
It is excellent wetting properties for glass fibre materials such as chopped strand mat, woven roving and etc. It has low shrinkage for glass fibre laminated part and good mechanical properties and UV resistance properties.
Application: Low viscosity polyurethane resin for the FRP composite lamination application such as water tank, car body kits, automotive body case and etc.
Packing in 10kg set.
| Code |
Color |
Mixed ratio |
Pot life |
Demold time |
Mixing |
| CT 350 |
Brownish |
100:50 |
15 - 25 min |
7 hours / 25°C |
2400 mPa.s |
POLYURETHANE FOAM
Polyurethane foam Part A is a pre-blended polyurethane foam system which is characterized by excellent flowability giving rise to a uniform density distribution and low thermal conductivity. It has been extensively evaluated in combination with a variety of commonly used substrates including plastic, steel, aluminum, polystyrene and
unsaturated polyester. Polyurethane foam Part B is a CN polymer based material with CN functionality ranging from 2.6-2.7
and with special composition structure, it can provide better resin flow and light weight.
Application: It is widely used in the production of rigid Polyurethane foam heat and cold insulating products, foam, paint, adhesive, sealing foam, cellular integral skin foam, automotive bumper and cushion parts, high resilient foam, synthetic
wood, and etc. Besides, can be used for big preinsulated pipe, panels (for cold-room and general building purpose), and pour-in-situ application.
Packing in 10kg set.
| Code |
Color |
Mixed ratio |
Cream time |
Fiber time |
Tack-free time |
Free-rise density |
| CN 30 |
Brownish |
100:100 |
30-32 sec |
200-220 sec |
300-340 sec |
32-33 kg/m3 |
